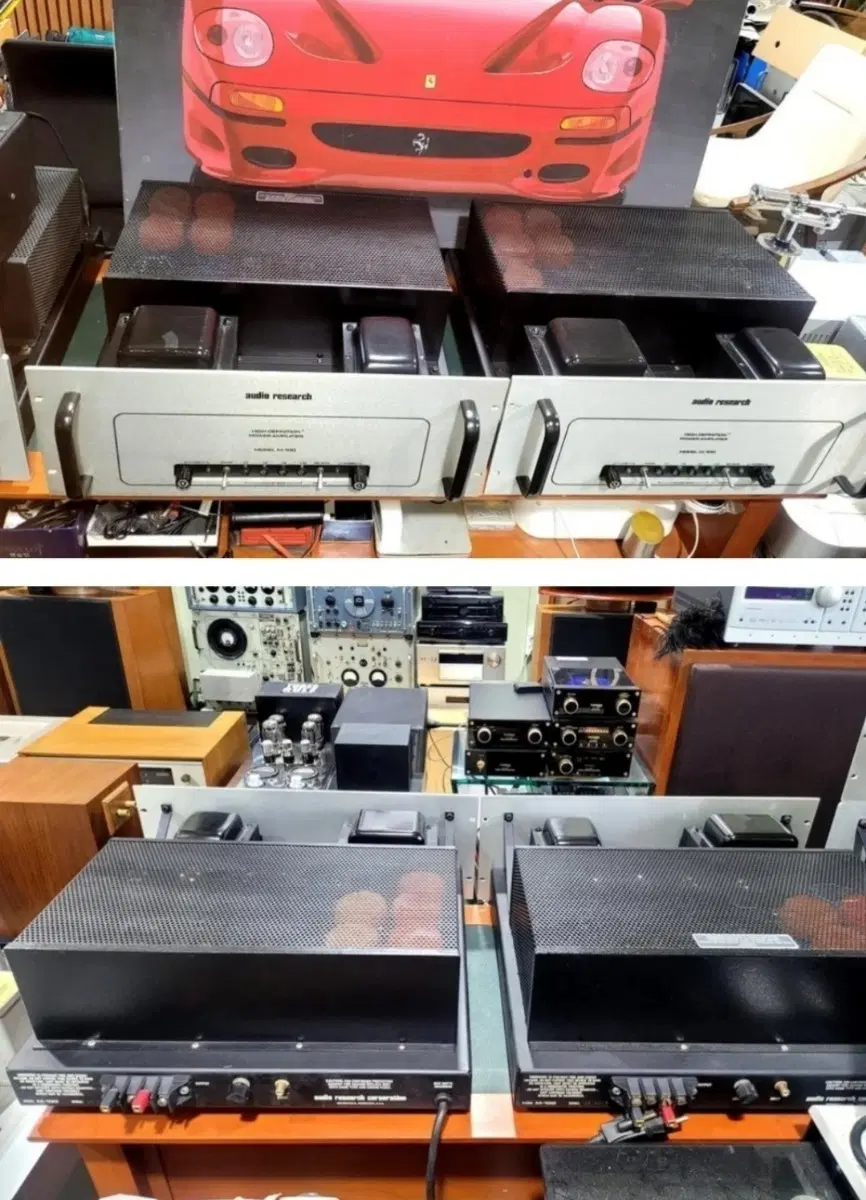

*오디오리서치 M-100 모노블럭진공관파워

오디오 리서치 대출력 진공관 모노블럭 진공관 M100 파워앰프입니다 출력관은 6550*4개 장착되있습니다 좌우 험없이 이상없으며 전원-220v 가격 -370만원 오삼4공팔2공일 경기도 과천시 가일1로 33-1 *자세한내용은 아래참고하세요 *M-100 SPEC POWER OUTPUT 100 watts minimum continuous at 16 ohms from 20Hz to 20kHz with less than 1% total harmonic distortion (typically below .005% at 1 watt). Approximate actual power available at "clipping"; 115 watts (1kHz). (Note that actual RMS power output is dependent upon both line voltage and ‘condition’ i. e.: if power line has high distortion, maximum power will be affected adversely, although from a listening standpoint this is not very critical.) *POWER BANDWIDTH (-3dB points) 12Hz to 60kHz FREQUENCY RESPONSE INPUT SENSITIVITY 0.7V RMS for rated output INPUT IMPEDANCE 65K ohms, nominal *OUTPUT TAPS OUTPUT REGULATION Approximately .4dB, 16 ohm load to open circuit *OVERALL NEGATIVE FEEDBACK 19dB *DAMPING FACTOR Approximately 20 *DISTORTION intermodulation distortion: Less than .2% at 1dB below rated output (100V P to P, 16 ohms - SMPTE method) *SLEW RATE 15 V/µs RISE TIME 5 µs *HUM & NOISE Less than 2mV RMS 90dB below rated output (broad-bandwidth unweighted, inputs shorted) *POWER SUPPLY ENERGY STORAGE Approximately 280 joules *POWER REQUIREMENTS 105-125VAC 60Hz (210-240VAC 50Hz) 800 watts maximum. 300 watts at "idle" - 400 watts at rated output power *TUBE COMPLEMENT (2 matched pairs) 6550 power output, (1) 6550 regulator, (1) 12AT7/ECC81 regulator amplifier, (2) 6DJ8/ECC88 phase inverter, input amplifier, (4) 7044 cross-coupler, driver, output couplers, (1) 7044 regulator *DIMENSIONS 19" (48 cm) W (standard rack panel) x 7" (18 cm) H x 16½" (42 cm) D (front panel back). Handles extend 1 ⅝" (4.1 cm) forward of the front panel. Output connector extends 1" behind rear panel. *WEIGHT 53 lbs. (24 kg) Net; 69 lbs. (31 kg)
