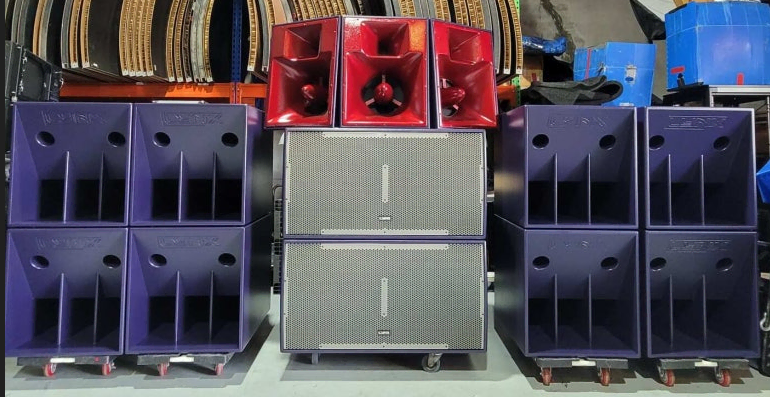

LYNX Pro audio 클럽음향시스템 스피커

1) 탑 스피커 LYNX DS12 - 6통 12인치 2WAY Components LF/MF 1×12″ + 1.4″ titanium diaphragm HF driver Frequency Range 130 Hz – 20 KHz (-10dB) Frequency Response 150 Hz – 18 KHz (± 3dB) Max SPL 130 dB / 133 dB peak Coverage Angle 60º H x 40 º V Power Low/Mid: 500W High: 60W Program Power Low/Mid: 1000W High: 120W ​ Crossover 1450 Hz Nominal Impedance Low/Mid: 8 Ohm High: 8 Ohm Connectors 2 x Neurtik Speakon NL4MP Construction 15mm Premium birch plywood Finish Different colours (RAL) and finishing options Dimensions 649 x 499 x 482 mm (H x W x D) Weight 32 Kg (70 lbs) -------------------------------------------------------------- 2) 싱글 서브우퍼 LYNX DS18S - 8통 Components LF: 1 x 18″ Frequency Range 30 Hz – 250 Hz (-10dB) Frequency Response 35 Hz – 200 Hz (± 3dB) Max SPL 133 dB / 136 dB peak Rated Power RMS 1000 W Program Power 2000 W Coverage 360º single unit Nominal Impedance 8 Ω Construction 18 mm Premium birch plywood Finish Different colours (RAL) and finishing options Dimensions 639 x 585 x 733 mm (H x W x D) Weight 42 Kg (92 lbs) 3) 듀얼 서브우퍼 LYNX HR218/36 - 4통 Connectors 2 x Neutrik Speakon NL4MP Finis Polyurea coating – other colours (RAL) available Material 18 mm premium birch plywood Dimensions 585 x 1080 x 781 mm (H x W x D) Weight 82 Kg (180 lbs) ---------------------------------------------- 파워앰프류 *렙그루펜 - 6000Q, FP6400, FP14000 *파워소프트 K10 , CAMCO, CROWN 스피커 컨트롤러류 (DSP) *XTA&BSS 등등 예산에 맞춰 준비 ------------------------------------------ 스피커 수량 *TOP - 6EA 18"싱글서브우퍼 - 8EA *18" 듀얼서브우퍼 - 4EA [HR218/36은 B&C 18TBX100 AES1200W 신품유닛으로 교체됨] 전체 18EA 판매가 - 현장 협의
